Mastering Tread Patterns for Truck Tires

The Ultimate Guide to Tread Patterns for Commercial Truck Tires

When it comes to commercial truck tires, the tread pattern is a crucial element that can significantly impact the tire’s performance, efficiency, and longevity. Think of the tread pattern as the tire’s unique “footprint” on the road, each designed with specific applications and environments in mind. Understanding these patterns can help you choose the right tire for your needs, improving traction, handling, ride comfort, noise levels, and fuel efficiency.

Types of Tread Patterns

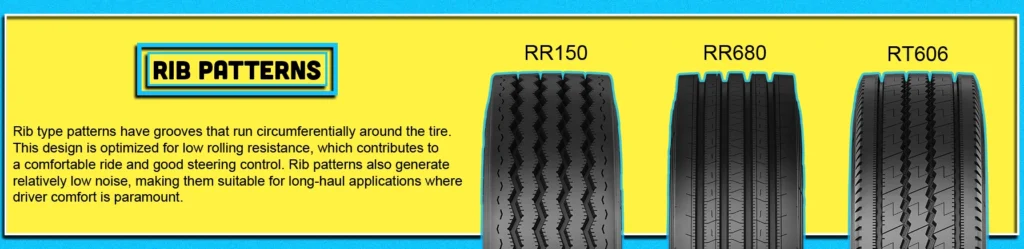

Rib Type

Key Benefits:

• Low rolling resistance
• Comfortable ride
• Good steering control
• Reduced noise generation

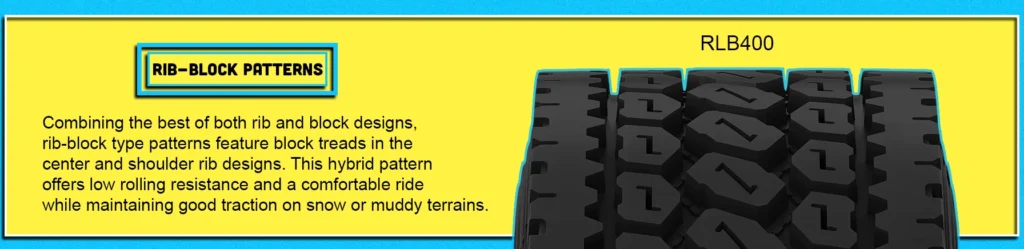

Rib-Block Type

Key Benefits:

• Low rolling resistance
• Comfortable ride
• Good traction in adverse conditions
• Reduced noise generation

Tread Design and Wet Road Conditions

A tire’s tread design includes grooves that create voids within the tread face, essential for effective water channeling on wet roads. Proper water evacuation reduces the risk of hydroplaning and enhances the tire’s contact with the road.

Types of Grooves:

• Circumferential Grooves: Efficiently channel water around the tire, minimizing the distance water travels to be expelled from the contact patch.
• Lateral Grooves: Break up water wedges at higher speeds, reducing hydroplaning risk and increasing road contact.

Advanced Tread Design Features

At Double Coin, every detail of our tires’ tread is engineered to deliver the perfect balance of performance, efficiency, and durability. Here are some advanced tread design features that set our tires apart:

Stress Wear Control Groove

These grooves reduce contact pressure at the tread edge, increasing resistance to shoulder step for longer wear.

Stress Equalizer Ribs

Ensure even contact pressure along the shoulders to combat step-down wear, extending tire life.

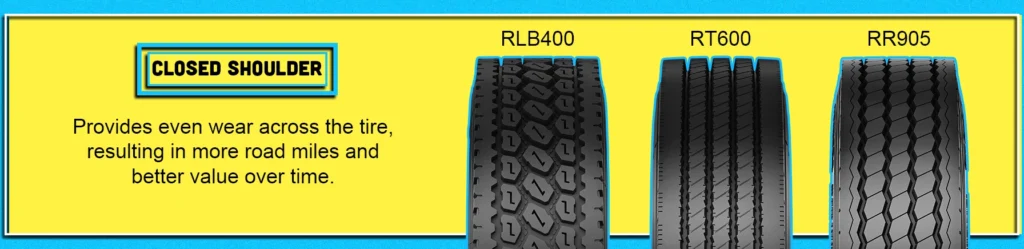

Closed Shoulder Drive

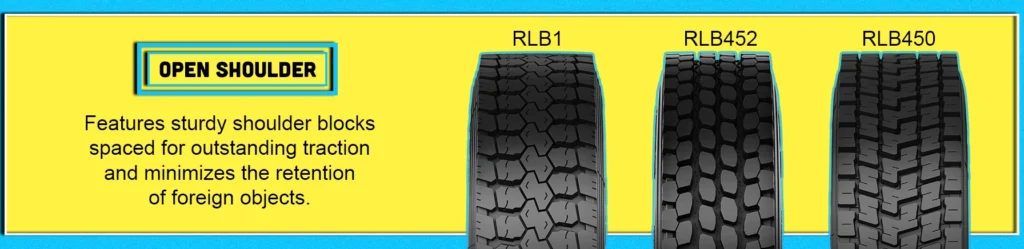

Open Shoulder Drive

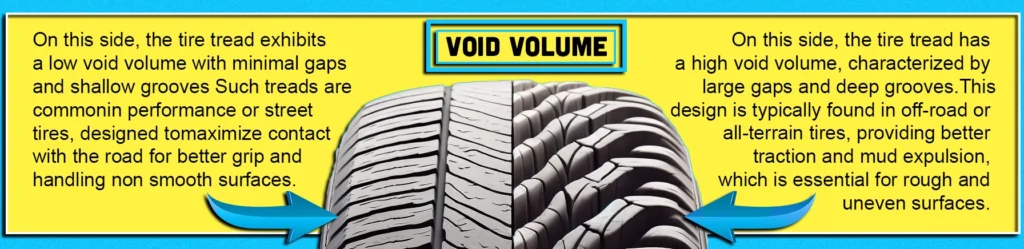

Void Volume

A low void ratio means more rubber contacts the road, enhancing durability. A high void ratio improves water drainage, crucial for wet conditions.



Microsipes

Optimize rib contact pressure to combat uneven wear and improve wet handling and braking performance.

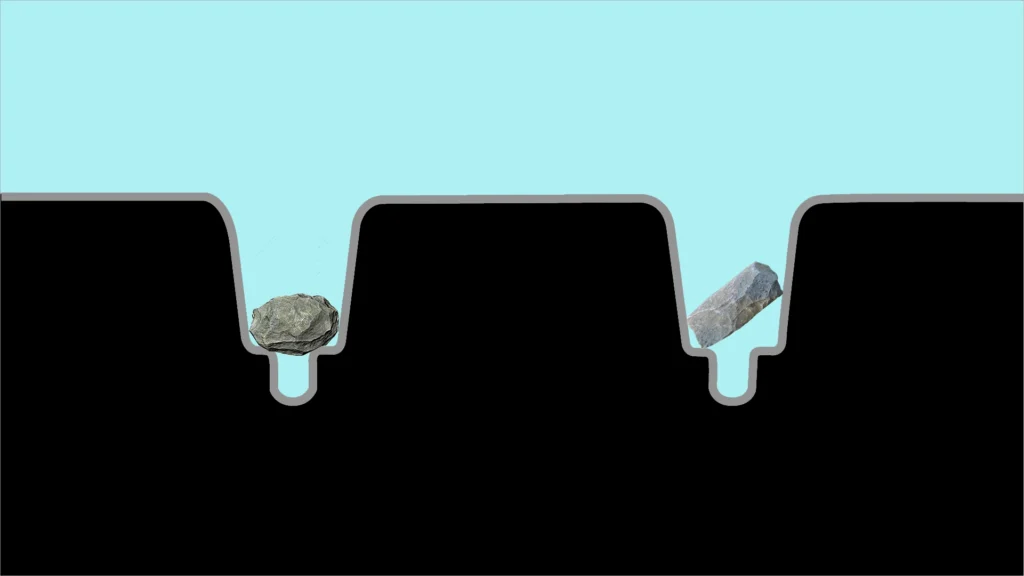

Groove Protectors

Prevent stones from traveling to the bottom of grooves, reducing damage to the casing and boosting durability and retreadability by up to 25%.

Groove Amplitude

“Zigzag” grooves provide more driving and braking traction, especially on soft surfaces, improving overall tire performance.

Choosing the right tread pattern is essential for maximizing the performance and longevity of your commercial truck tires. Trust Double Coin to provide innovative, reliable solutions tailored to your specific needs.
